Products / Wall hatch

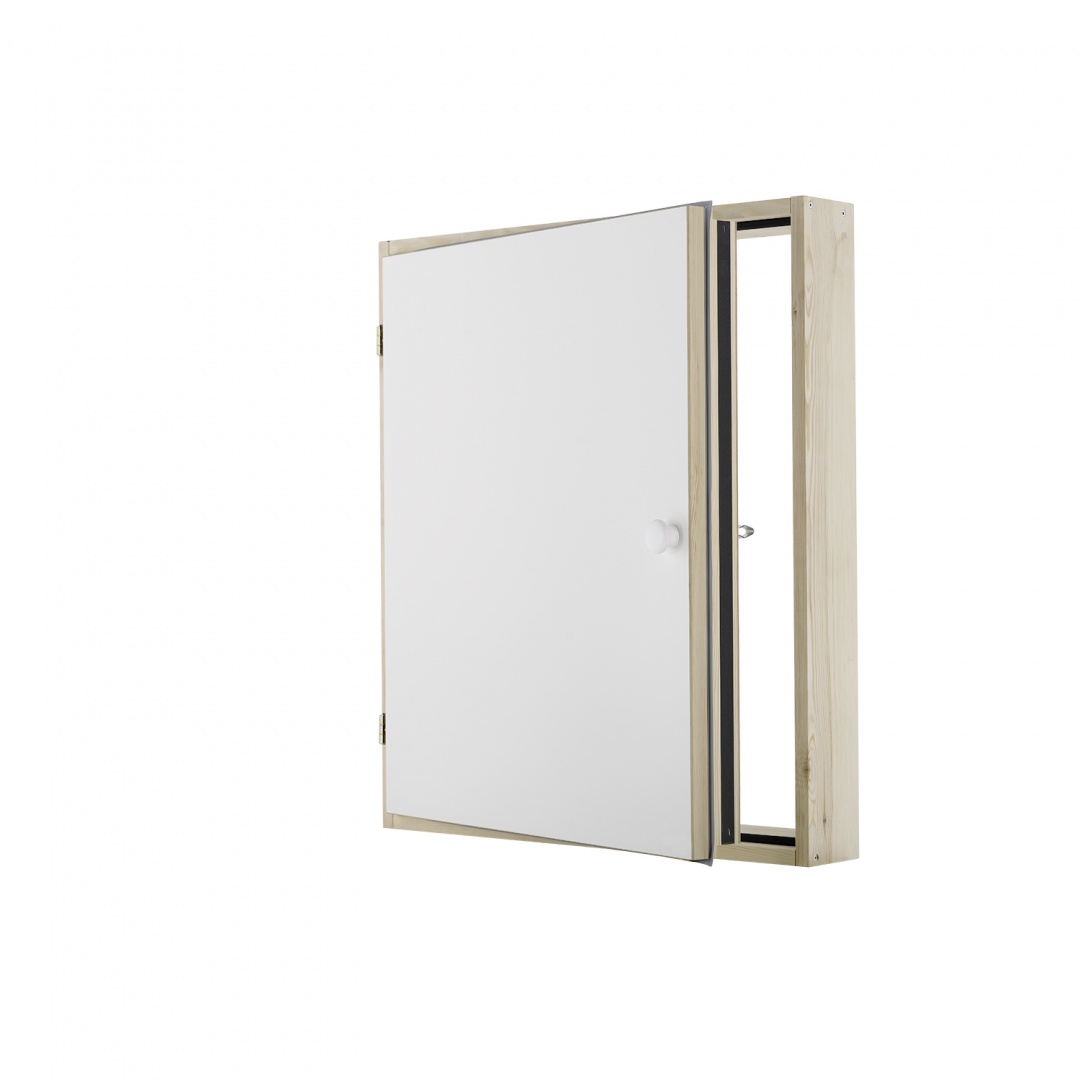

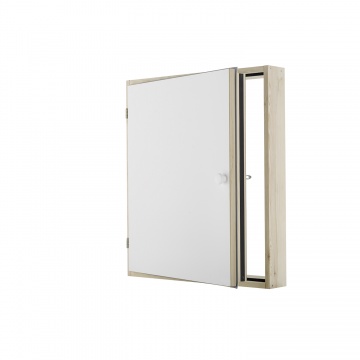

DK EI30 POLAR
Fire-resistant wall hatch with fire resistance EI 30.
See also
DK TERMO
DK EI30 POLAR
Fire-resistant wall hatch with fire resistance EI 30.
See also
DK TERMO
DK TERMO
DK EI30 POLAR
OMAN wall hatch is the perfect way to make better use of space in your home. The space between the roof and the floor usually remains unused. After installing the wall hatch, the space can become an ideal closet.
Fire-resistant wall hatch with fire resistance EI 30.
Ud – hatch interior value.
Technical table - DK EI30 POLAR
| INSULATED HATCH THICKNESS | 86 mm |
| THICKNESS OF THERMAL INSULATION | 80 mm |
| HATCH COLOUR FROM BOTH SIDES | WHITE |
| FRAME HEIGHT | 110 mm |
| FRAME THICKNESS | 30 mm |
| DOOR OPENING METHOD | KNOB |
| SLOTTED HINGE | METAL |
| GUARANTEE | 3 YEAR |
| FRAME MATERIAL | SOFTWOOD |
| OPENING TO THE LEFT OR TO THE RIGHT SIDE | UNIVERSAL MONTAGE |
| PURPOSE OF USE | INTERIOR |
| TYPE OF LOCK | LOCKING LATCH WHEN CLOSED |
BOX DIMENSIONS [cm]
OUTER BOX DIMENSIONS, MOUNTING OPENING 2 cm LARGER
OUTER BOX DIMENSIONS, MOUNTING OPENING 2 cm LARGER
| 70x60 | 80x55 | 90x55 | 100x60 | 110x60 |
| 70x70 | 80x60 | 90x60 | 100x70 | 110x70 |
| 80x70 | 90x70 |
DK EI30 POLAR
Product card
Download pdf
