TERMO PS

Basic loft ladder model with insulated hatch with a U value of 1,22 W/m2*K.


See also
MINI POLAR


TERMO PS

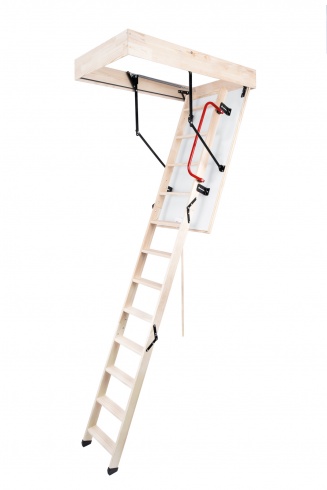

The Termo PS loft ladder has got single sealing and hatch thickness 26mm. Termo PS model is ideally suited to conditions where the attic is insulated and does not require additional thermal insulation. This ladder is equipped with non-slip feet , which perfectly adhere to the ground and prevent scratches on the floor surface.

Our non-slip feet included in TERMO PS loft ladder provide an aesthetic finish for the ladder after cutting. To increase security and for comfortable use our TERMO PS loft ladder is also equipped with stable and durable handrail. In the interest of user convenience, the handrail has been designed in such a way that it can be mounted on the left or right side depending on customer preferences. The excellent quality of materials used for the production of stairs and attention to every details of finish cause that the stairs will satisfy even the most demanding customers . The maximum load during use is up to 160 kg.

Technical table - TERMO PS
INSULATED HATCH THICKNESS  26 mm
THICKNESS OF THERMAL INSULATION 20 mm
HATCH COLOUR FROM BOTH SIDES WHITE
WOODEN LADDER 3 SECTIONS
HEIGHT OF WOODEN BOX 135 mm
WIDTH OF LADDER 400 mm
WIDTH OF STEP  358 mm
DEPTH OF STEP  80 mm
LANDING SPACE  134 / 148 cm
OPENING DISTANCE/ANGLE  160 / 166 cm
MAXIMUM CEILING HEIGHT  280 cm

BOX DIMENSIONS [cm]
OUTER BOX DIMENSIONS, MOUNTING OPENING 2 cm LARGER
110x55 120x55 130x55 140x55
110x60 120x60 130x60 140x60
110x70 120x70 130x70 140x70
