SOLID EXTRA

Loft ladder with hatch Ud value of 0,85 W/m2*K. Solid metal ladder – 210 kg.


See also
SOLID TERMO


SOLID EXTRA

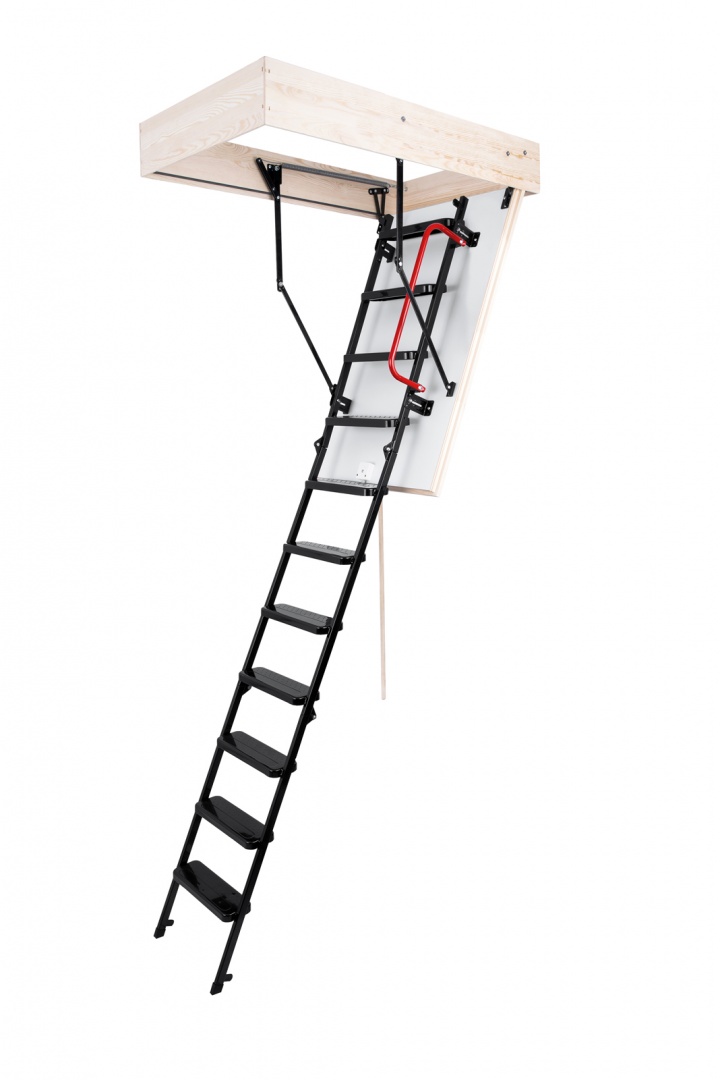

The SOLID EXTRA loft ladder is characterised by single sealing and hatch thickness 46mm. SOLID EXTRA model is ideally suited to conditions where the attic is poorly insulated and requires additional thermal insulation. This ladder is equipped with durable SOLID metal ladder, thanks to it the maximum load when using stairs is up to 210 kg. Our non-slip feet included in SOLID EXTRA loft ladder provide an aesthetic finish for the ladder after cutting. The excellent quality of materials used for the production of stairs and attention to every details of finish cause that the stairs will satisfy even the most demanding customers.

To increase security and for comfortable use our SOLID EXTRA loft ladder is also equipped with stable and durable handrail. In the interest of user convenience, the handrail has been designed in such a way that it can be mounted on the left or right side depending on customer preferences. The excellent quality of materials used for the production of stairs and attention to every details of finish cause that the stairs will satisfy even the most demanding customers.

Technical table - SOLID EXTRA
INSULATED HATCH THICKNESS  46 mm
THICKNESS OF THERMAL INSULATION 40 mm
HATCH COLOUR FROM BOTH SIDES WHITE
METAL LADDER 3 SECTIONS
HEIGHT OF WOODEN BOX 170 mm
WIDTH OF LADDER 400 mm
WIDTH OF STEP  361 mm
DEPTH OF STEP  113 mm
LANDING SPACE  128 / 142 cm
OPENING DISTANCE/ANGLE  161 / 165 cm
MAXIMUM CEILING HEIGHT  280 cm

BOX DIMENSIONS [cm]
OUTER BOX DIMENSIONS, MOUNTING OPENING 2 cm LARGER
110x55* 120x55* 130x55* 140x55*
110x60 120x60 130x60 140x60
110x70 120x70 130x70 140x70

      *No possibility of installing handrail
