MINI TERMO

Unique 4-section MINI ladder in a small box with Ud value of 1,22 W/m2*K.


See also
FLEX TERMO


MINI TERMO

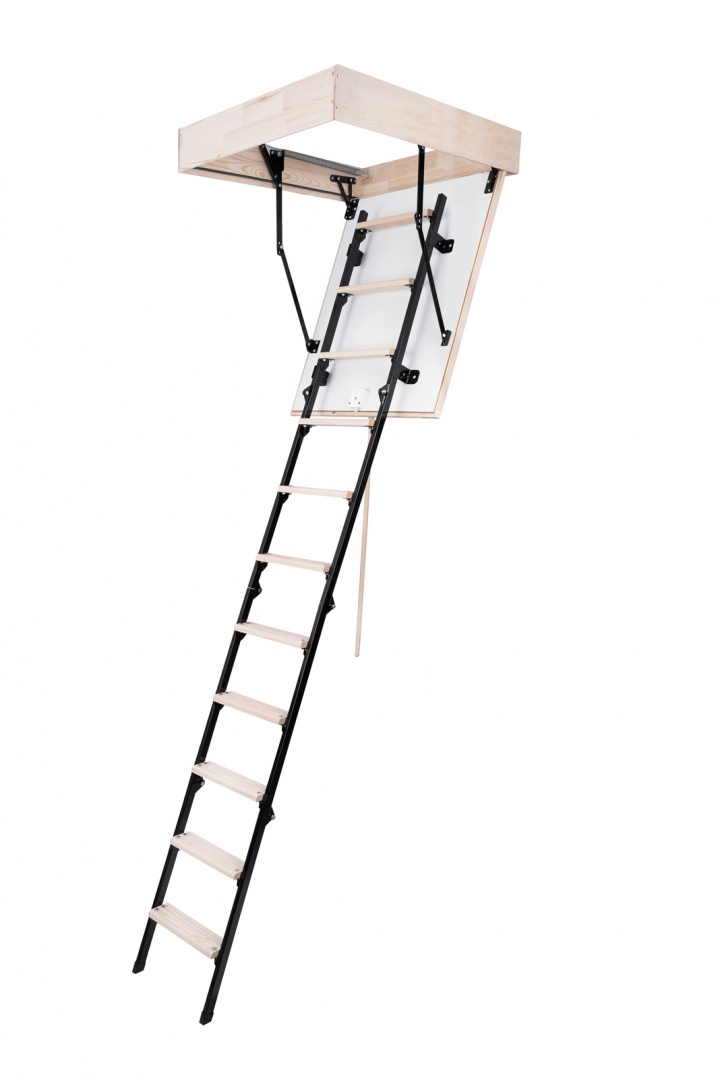

The MINI TERMO loft ladder has got single sealing and hatch thickness 26mm. MINI TERMO model is ideally suited to conditions where the attic is insulated and does not require additional thermal insulation. The MINI TERMO stair model, thanks to its small dimensions, is perfect for installation in narrow and small corridors. The little size of the stairs were achived thanks to using the unique 4 section metal-wood lader. This ladder is equipped with non-slip feet , which perfectly adhere to the ground and prevent scratches on the floor surface. Our non-slip feet included in MINI TERMO loft ladder provide an aesthetic finish for the ladder after cutting.

The excellent quality of materials used for the production of stairs and attention to every details of finish cause that the stairs will satisfy even the most demanding customers . The maximum load during use is up to 160 kg.

Technical table - MINI TERMO
INSULATED HATCH THICKNESS  26 mm
THICKNESS OF THERMAL INSULATION 20 mm
HATCH COLOUR FROM BOTH SIDES WHITE
WOODEN-METAL LADDER 4 SECTIONS
HEIGHT OF WOODEN BOX 135 mm
WIDTH OF LADDER 365 mm
WIDTH OF STEP  324 mm
DEPTH OF STEP  80 mm
LANDING SPACE  101 / 135 cm
OPENING DISTANCE/ANGLE  115 / 125 / 126 cm
MAXIMUM CEILING HEIGHT  260 / 265 cm

BOX DIMENSIONS [cm]
OUTER BOX DIMENSIONS, MOUNTING OPENING 2 cm LARGER
80x60 90x60 100x60
80x70 90x70 100x70
