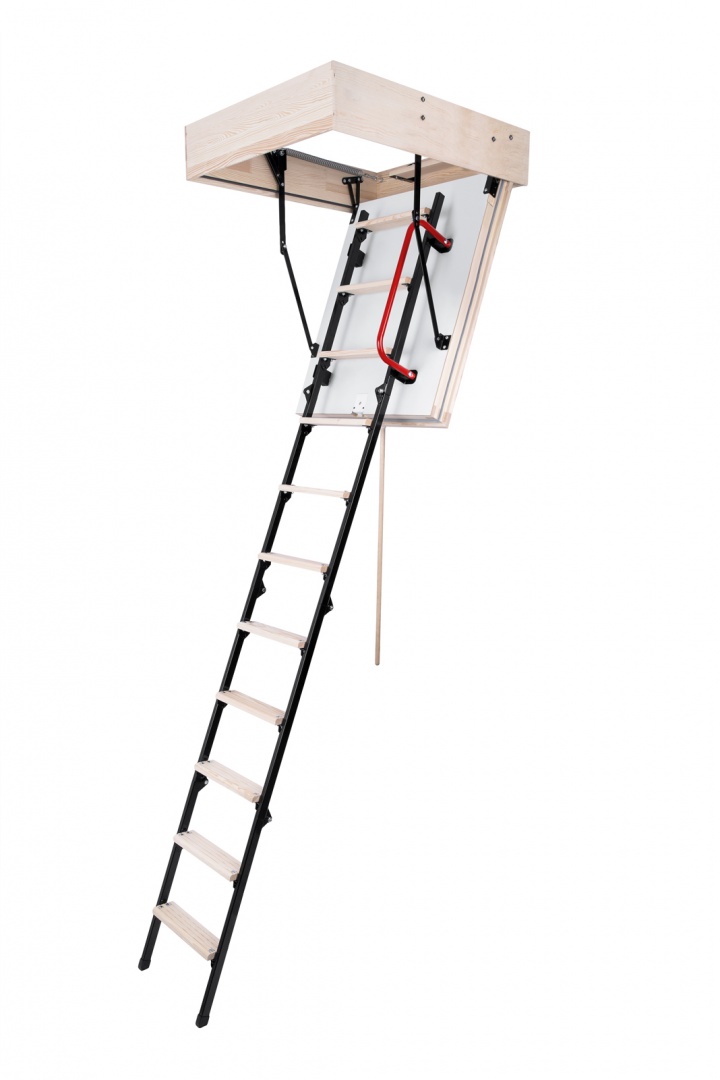

MINI POLAR

Energy-efficient MINI loft ladders with a hatch Ud value of 0,36 W/m2*K.


See also
MINI EXTRA


MINI POLAR

 The MINI EXTRA loft ladder has got single sealing and hatch thickness 46mm. MINI EXTRA model is ideally suited to conditions where the attic is insulated and does not require additional thermal insulation. The MINI EXTRA loft ladder model, thanks to its small dimensions, is perfect for installation in narrow and small corridors.

The little size of the stairs were achived thanks to using the unique 4 section metal-wood lader. This ladder is equipped with non-slip feet , which perfectly adhere to the ground and prevent scratches on the floor surface. Our non-slip feet included in MINI EXTRA loft ladder provide an aesthetic finish for the ladder after cutting. To increase security and for comfortable use our MINI EXTRA loft ladder is also equipped with stable and durable handrail. In the interest of user convenience, the handrail has been designed in such a way that it can be mounted on the left or right side depending on customer preferences.

The excellent quality of materials used for the production of stairs and attention to every details of finish cause that the stairs will satisfy even the most demanding customers . The maximum load during use is up to 160 kg.

Technical table - MINI POLAR
INSULATED HATCH THICKNESS  86 mm
THICKNESS OF THERMAL INSULATION 80 mm
HATCH COLOUR FROM BOTH SIDES WHITE
WOODEN-METAL LADDER 4 SECTIONS
HEIGHT OF WOODEN BOX 170 mm
WIDTH OF LADDER 365 mm
WIDTH OF STEP  324 mm
DEPTH OF STEP  80 mm
LANDING SPACE  142 / 149 cm
OPENING DISTANCE/ANGLE  132 / 133 cm
MAXIMUM CEILING HEIGHT  265 cm

BOX DIMENSIONS [cm]
OUTER BOX DIMENSIONS, MOUNTING OPENING 2 cm LARGER
90x50* 100x50* 110x50*
90x55 100x55 110x55
90x60 100x60 110x60
90x70 100x70 110x70

    *No possibility of installing handrail
