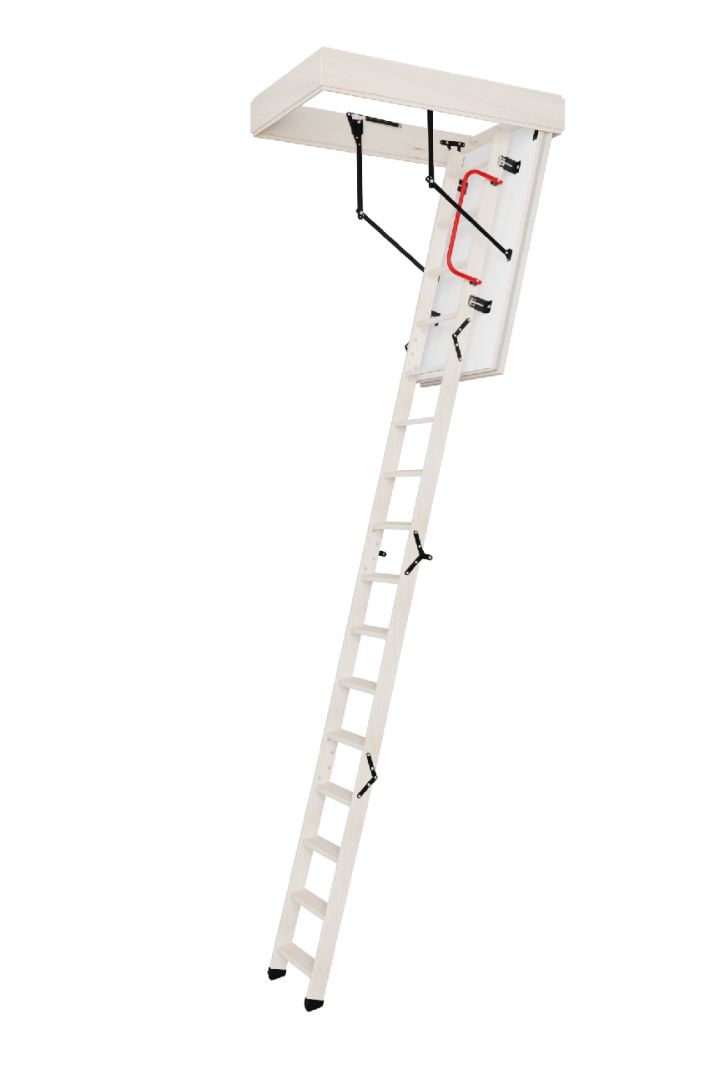

LONG EI 45

Energy-efficient loft stairs with a hatch Ud value of 0,54 W/m2*K, with additional fire seal. The fire resistance of this model is EI45. Loft ladders for maximum celing height up to 3.1 m


See also
LONG POLAR


LONG EI 45

The LONG EI45 loft ladders are characterized by double sealing, including a single fire resistant sealing and hatch  thickness 66mm. The LONG EI45 loft ladders have the EI45 fire resistance class. The LONG EI45 model is ideally suited for installationin rooms particularly exposed to fire outbreak. Their fire safety properties allows an effective  isolation of the room, in which the fire occurred from the attic. The loft ladders have anti skidding feets, they  adheres perfectly to the ground, prevent scratching of the foor and provide an aesthetic finish for the ladder after cutting. For increased safety and convenience of use, LONG EI45 loft ladders are equipped in a stable and durable handrail. In the interest of user convenience, the handrail can be installed on the left or right side – depending on the customer preferences. The excellent quality of materials used for the production of loft ladders and attention  to every detail of finish cause that the stairs will satisfy even the most demanding customers. Their maximum load  during use is up to 160 kg.

Technical table - LONG EI 45
Insulated hatch thickness 66 mm
Thickness of thermal insulation 60 mm
Hatch colour from both sides White
Wooden ladder 4 sections
Height of wooden box 170 mm
Width of ladder 400 mm
Width of step 358 mm
Depth of step 80 mm
Landing space 165 cm
Opening distance/angle 171 cm
Maximum ceiling height 310 cm

BOX DIMENSIONS [cm]
OUTER BOX DIMENSIONS, MOUNTING OPENING 2 cm LARGER

Box dimensions [cm] AxB

120x60 130x60

120x70 130x70

Outer box dimensions, mounting opening 2 cm larger
