FLEX TERMO METAL BOX

Flex loft ladderss with metal chest. Insulated hatch with Ud value of 1,22 W/m2*KK.


See also
SOLID POLAR


FLEX TERMO METAL BOX

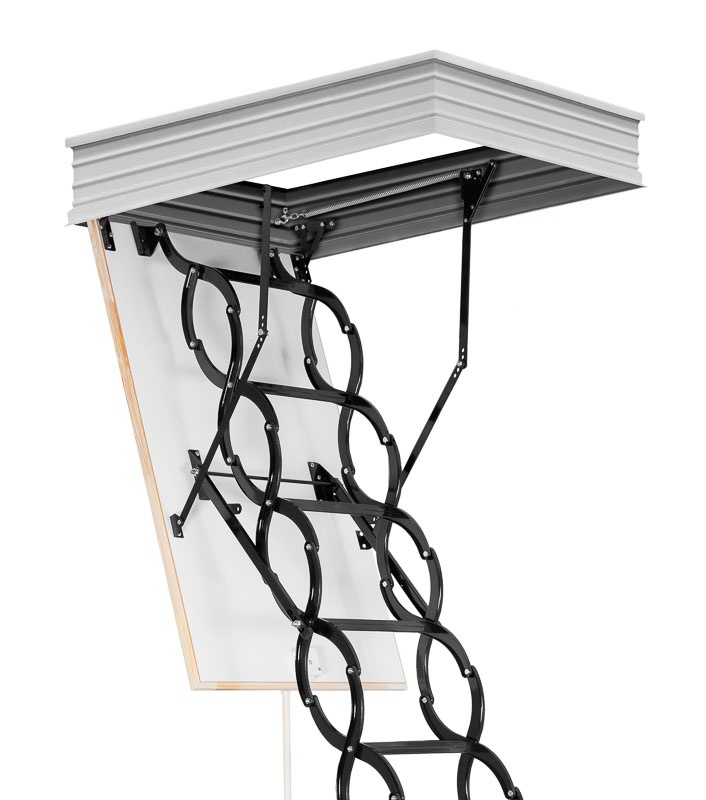

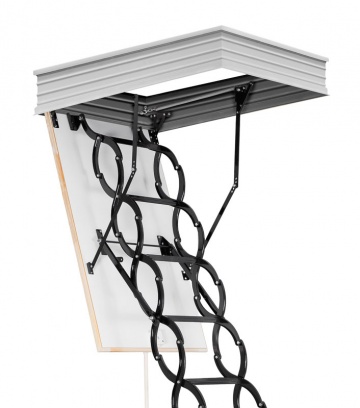

The FLEX TERMO METAL BOX loft ladder has got hatch thickness 26mm. FLEX TERMO METAL BOX model is ideally suited to conditions where the attic is insulated and does not require additional thermal insulation. The FLEX stair model, thanks to the solid metal extendable "scissor" ladder, is perfect for installation in rooms up to 290 cm high. Additional model METAL BOX is equipped with metal box, which is finished with an aesthetic masking strip. The excellent quality of materials used for the production of stairs and attention to every details of finish cause that the stairs will satisfy even the most demanding customers . The maximum load during use is up to 160 kg.

Technical table - FLEX TERMO METAL BOX
INSULATED HATCH THICKNESS  26 mm
THICKNESS OF THERMAL INSULATION 20 mm
HATCH COLOUR FROM BOTH SIDES WHITE
FLEX LADDER 10 STEPS
HEIGHT OF WOODEN BOX 145 mm
WIDTH OF LADDER x50 = 290 mm;  x60,70 = 390mm
WIDTH OF STEP  x50 = 245 mm;  x60,70 = 345mm
DEPTH OF STEP  80 mm
LANDING SPACE  195 / 200 / 210 cm
OPENING DISTANCE/ANGLE  220 / 225 / 230 / 245 cm
MAXIMUM CEILING HEIGHT  290 cm

BOX DIMENSIONS [cm]
OUTER BOX DIMENSIONS, MOUNTING OPENING 2 cm LARGER
70x50 80x50 90x50 100x50
70x60 80x60 90x60 100x60 120x60 130x60
70x70 80x70 90x70 100x70 120x70 130x70
