EI 60

The EI60 loft ladders are characterized by triple sealing, including a single fire sealing and hatch thickness 66mm.


See also
KOMFORT


EI 60

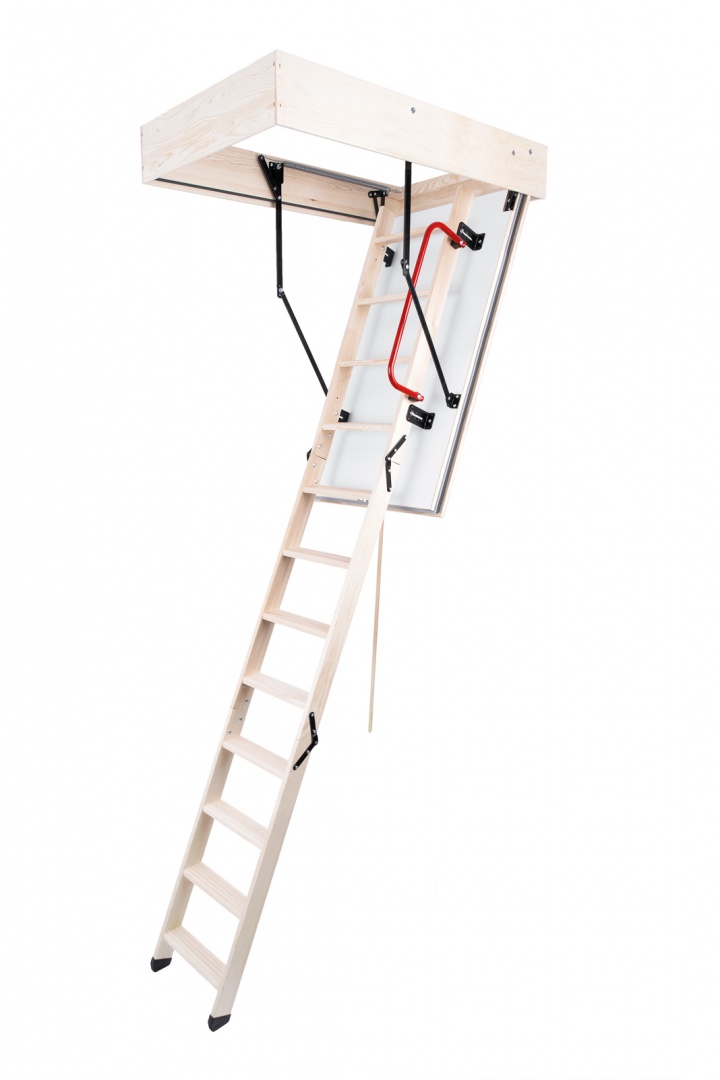

The EI60 loft ladders are characterized by triple sealing, including a single fire sealing and hatch thickness 66mm. The EI60 loft ladders have the EI60 fire resistance class. The EI60 model is ideally suited for installation in rooms particularly exposed to fire outbreak. Their fire safety properties allows an effective isolation of the room, in which the fire occurred, from the attic. This prevents further spread of fire. The loft ladders have anti skidding feets, they adheres perfectly to the ground, prevent scratching of the floor and provide an aesthetic finish for the ladder after cutting.

For increased safety and convenience of use, EI60 loft ladders are equipped in a stable and durable handrail. In the interest of user convenience, the handrail can be installed on the left or right side – depending on the customer preferences. The excellent quality of materials used for the production of loft ladders and attention to every detail of finish cause that the stairs will satisfy even the most demanding customers. Their maximum load during use is up to 160 kg.

Technical table - EI 60
INSULATED HATCH THICKNESS  66 mm
THICKNESS OF THERMAL INSULATION 60 mm
HATCH COLOUR FROM BOTH SIDES WHITE
WOODEN LADDER 3 SECTION
HEIGHT OF WOODEN BOX 170 mm
WIDTH OF LADDER 400 mm
WIDTH OF STEP  358 mm
DEPTH OF STEP  80 mm
LANDING SPACE  145 cm
OPENING DISTANCE/ANGLE  168 cm
MAXIMUM CEILING HEIGHT  280 cm

BOX DIMENSIONS [cm]
OUTER BOX DIMENSIONS, MOUNTING OPENING 2 cm LARGER
120x60 130x60
120x70 130x70

EI 60
